Amplicon Senses 7200 series

Panel PC industriel 15 pouces TFT LCD, Intel iCore, Double PCIe slots, Slim

  • Chipset Intel® Q170
  • Processeurs 6eme et 7eme generation Intel Core
  • 2x emplacements RAM DDR4, jusqu’à 32Go
  • VGA et DVi
  • 2x slots PCIe x8
  • 2x emplacements pour disques, Raid0/1 disponible

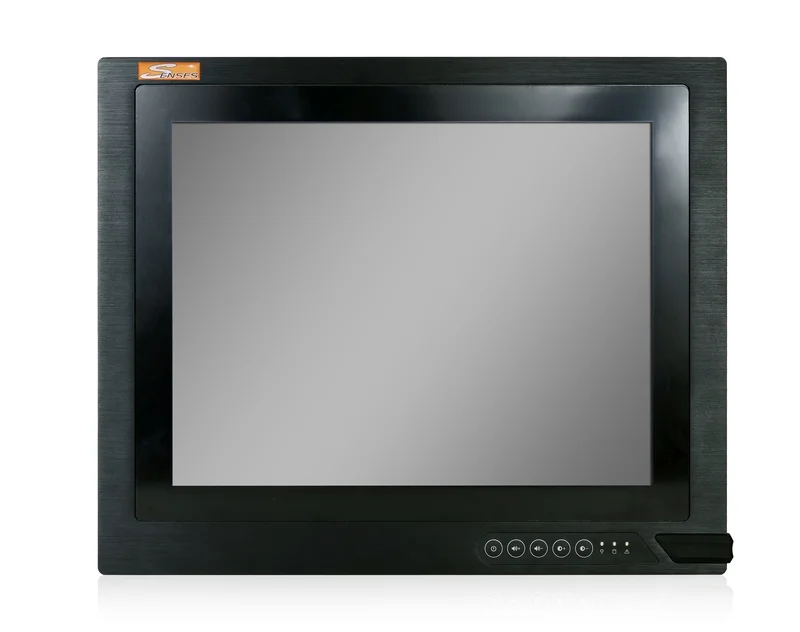

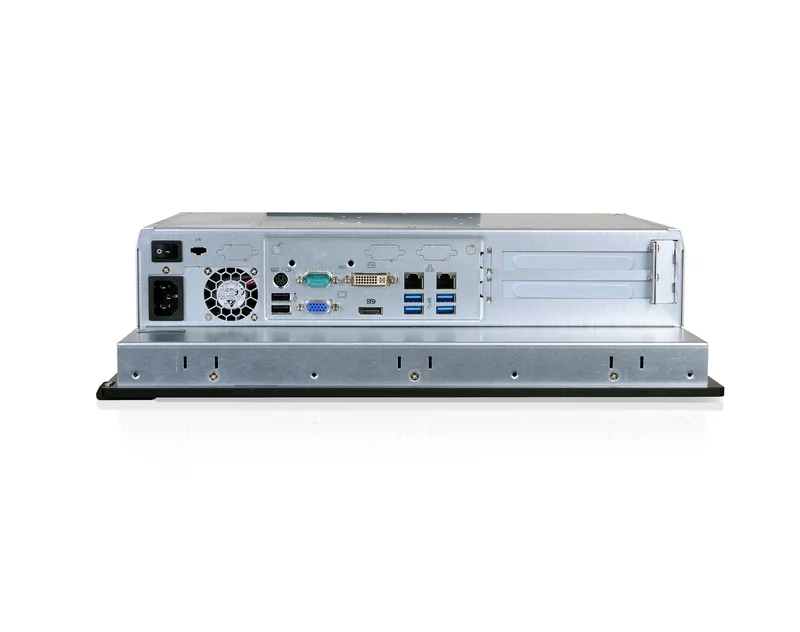

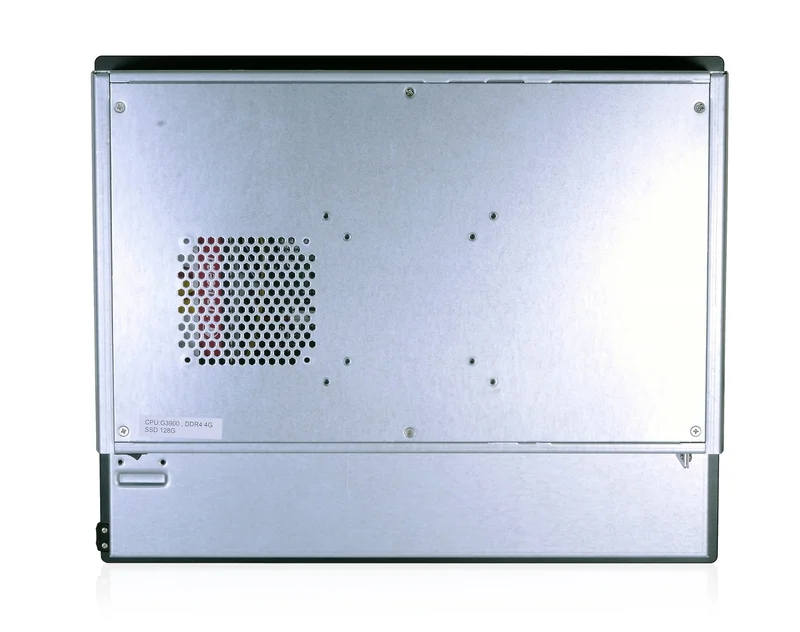

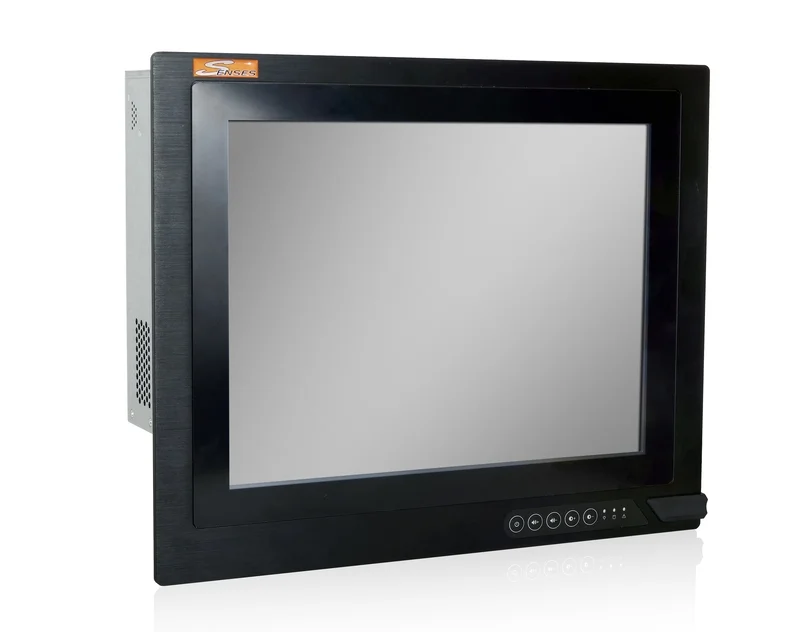

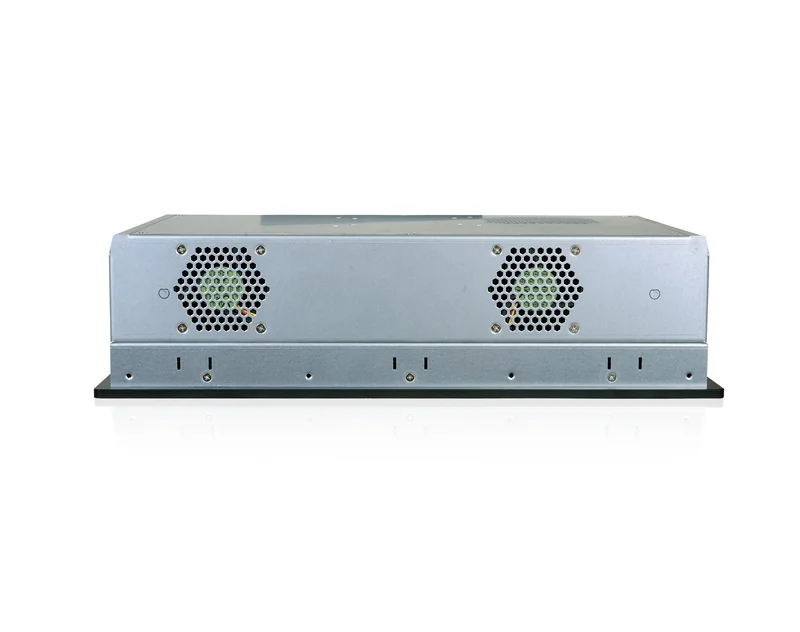

The Amplicon Senses 7200 series are expandable industrial panel PC’s, equipped with 15” & 17" TFT LCD touch screen displays, IP65 rated front panels with a front mounted USB 2.0 port.

Designed for resilience and expansion the 7200 series has Dual 2.5” SSD/HDD’s with RAID 0/1 capability as well as dual expansion slots and an mPCIe for an optional WIFI module or mSATA module.

With options of Intel® Skylake and Kabylake processors, these powerful panel PC’s can be used for almost any processor intensive application making them suitable for many industries including process control, building application, and factory automation.

Screen Size
15 inch
17 inch
CPU
Core i5
Core i7
OS Support
Linux
Windows 10
Windows 10 IoT
Windows 7
Windows Emb Std 7
Memory
4 GB
Memory Type
DDR4
Storage
500GB HDD
Expansion
PCIe
mPCIe
CPU Generation
6th (Skylake)
7th (Kaby Lake)
CPU Cores (Physical)
4
Max Memory
32 GB
Mounting
Panel
VESA
Senses_7215-Panel-PC-datasheet
Datasheet 1.14 MB
senses-roadmap
Roadmaps 11.27 MB

Modèles disponibles (8)
