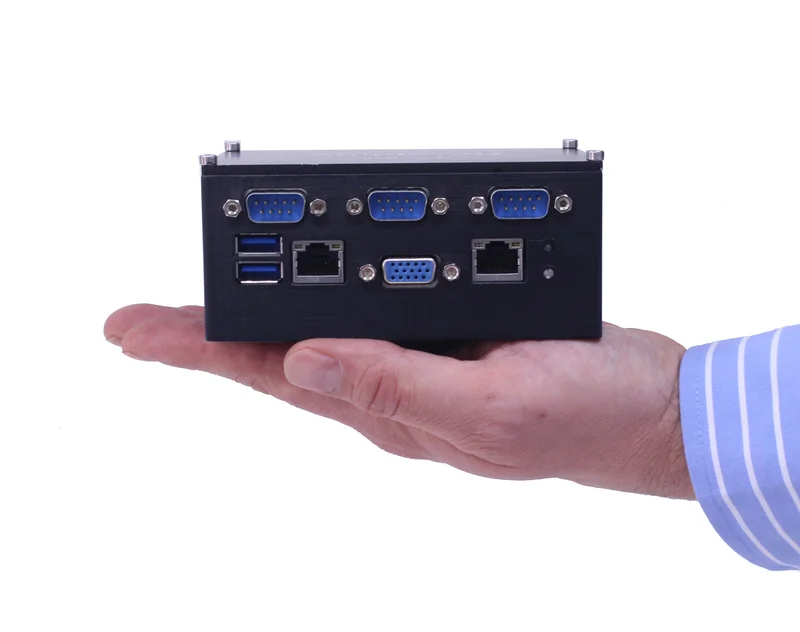

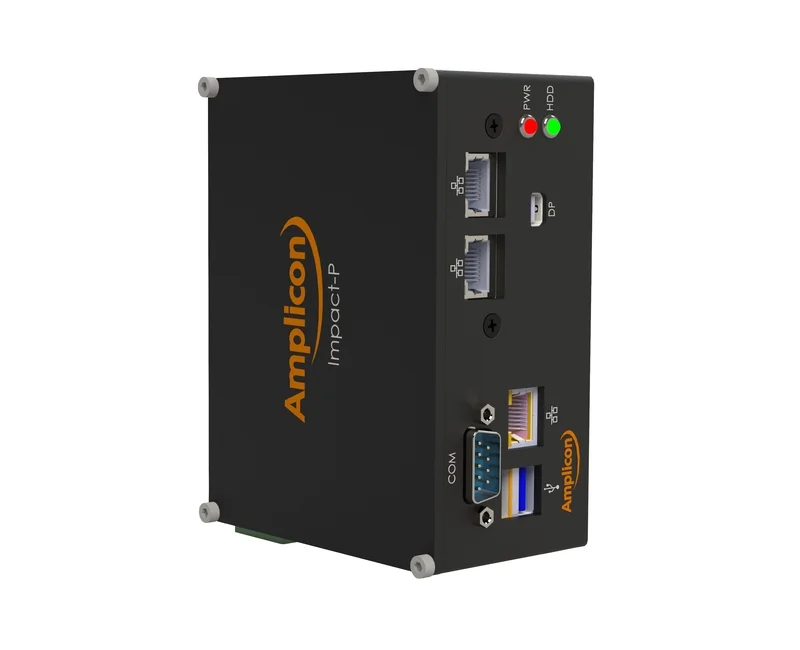

Amplicon Impact-P AL series
Ultra embedded and rugged Din rail PC, powered by Intel ATOM processors E3900 series
- Embarque les processeurs Atom™ de la famille E3900
- Supports USB 3.0, SATA III and M.2
- Multiple power options
- Windows 10 and Linux support
- -20°C to +70°C Operating tempurature
The Amplicon Impact-P ultra embedded rugged PC's feature the Intel® ATOM™ E3900 generation processors, supported by high bandwidth DDR3L 1600MHz memory.
With an ultra compact chassis milled out of solid aluminium, these units are ideal for applications in harsh conditions where space and power is at a premium. The ultra small size contains a wide range of I/O, with each model offering something different.
The Impact-P range of embedded PC's is suited to low power edge applications such as transport, utilities and security.
Designed and Manufactured in the UK the Impact-P is customisable to project requirements including I/O, chassis colour and branding.
Watch product overview on the Amplicon Youtube channel
360 view available on Amplicon YouTube Channel
- CPU
- ATOM®
- Memory
- 2 GB
- OS Support
- Linux
- Windows 10
- Windows 10 IoT
- Expansion
- mPCIe
- M.2
- Storage
- 32GB SSD
- 64GB SSD
- CPU Generation
- Apollo Lake
- CPU Cores (Physical)
- 2
- Max Memory
- 4 GB
- 8 GB
- Mounting
- DIN Rail
- PoE
- Yes
- Impact-P_AL31PD
- Datasheet 2.72 MB
- Impact-P_AL32
- Datasheet 1.17 MB
- Impact-P_AL13PSE
- Datasheet 4.25 MB
