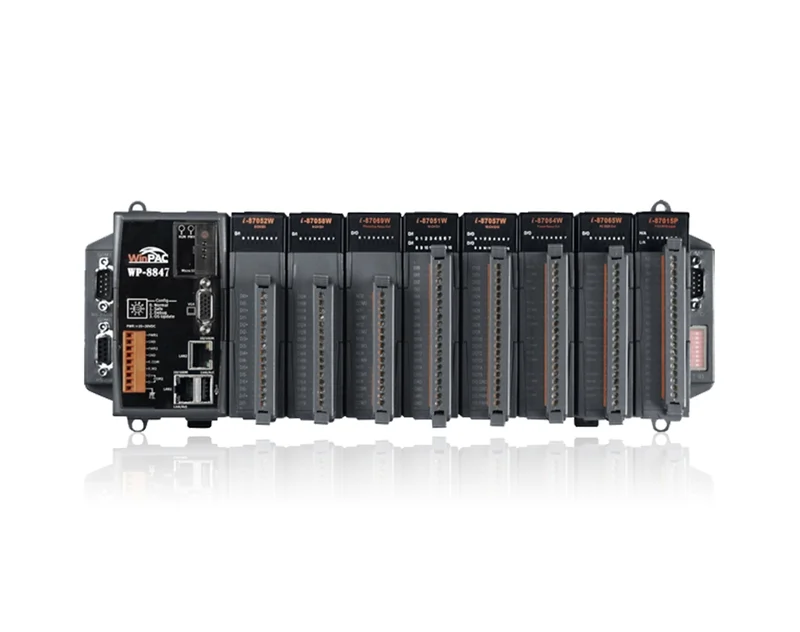

ICP DAS WinPAC-8447/8847 series
ICP DAS Programmable Automation Controller (PAC)
- Windows CE.NET 5.0
- Remote maintanence via FTP server & VCEP software
- Built-in OPC server
- Bult-in VGA port
- Rich I/O expansion ability (RS-232/485, Ethernet, FRnet & CAN)
- Dual watchdog timer
- Dual battery-back up SRAM (512 KB)
- Dual Ethernet ports
- Redundant power inputs
- Ventilated housing design allows operation between -25°C ˜ +75°C
WinPAC-8447/8847 from ICP DAS is the new generation WinCE based ISaGRAF Programmable Automation Controller, designed specifically for control tasks that require the performance of an industrial computer and the robutness of a PLC. The base holds four or eight I/O modules and can be expanded further with RS485 network.
Using Windows CE.NET 5.0 in the WinPAC-8447/8847 makes it easier to run PC-based control software such as Visual Basic.NET, Visual C,Embedded Visual C++, SCADA software & Soft PLC etc
- System Type
- PAC Systems
- Brand
- ICP DAS
- Slots
- 4
- 8
- OS Support
- Windows CE 5.0
- Connectivity
- Serial
- Ethernet
- USB
- Pre Installed Software
- ISaGRAF
- CPU Speed
- 520 MHz
- Memory
- 128 MB
- Flash Expansion
- Yes
- ICP-DAS-WinPAC-8447_8847_datasheet
- Datasheet 4.55 MB
- industrial_io_modules_ds
- Datasheet 3.35 MB
