IE-4010-16S12P - 96165133

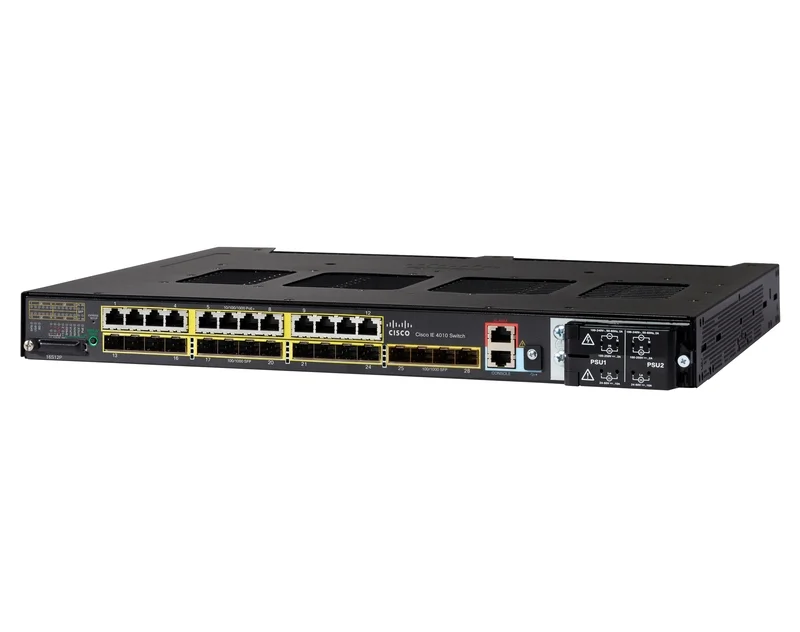

Cisco IE-4010-16S12P 28 Port 16xGE SFP, 12xGE RJ45 PoE, Base License
- 28 ports Gigabit Ethernet (GE) combinés RJ45 et SFP
- Capacité de commutation non bloquante de 56 Gbps
- Prise en charge de l’alimentation par Ethernet (PoE) et PoE Plus (PoE+) jusqu’à 24 PIDs
- Fonctionnalités du logiciel Cisco IOS pour une intégration informatique simple et une cohérence des politiques
- Configuration simplifiée via la découverte sans contact DHCP et la configuration rapide avec une carte flash SD interchangeable
- Gestion des périphériques facilitée avec Cisco Network Assistant, l'interface Cisco Prime ainsi que des solutions de gestion tierces
- Sécurité renforcée grâce à l'intégration de l'application de politique de sécurité directement dans le commutateur
The Cisco® Industrial Ethernet (IE) 4010 switches with 28 Gigabit Ethernet interfaces are high-performance and ruggedised with Layer 3 switching and Power-over-Ethernet (PoE) capabilities, making them an ideal choice for access switching in industrial environments.
The Cisco IE 4010 delivers comprehensive Cisco IOS® software security features and high-availability ring protocols (such as Cisco's REP).
The Cisco IE 4010 is built for outdoor enclosures and harsh environments while adhering to overall IT network design, compliance, and performance requirements. Management is made easy with a GUI-based web user Interface, and Express Setup for out-of-box configuration to deliver advanced security, data, video, and voice services over industrial networks.
Amplicon, authorised Cisco IoT Advantage Specialist partner, are offering 50% off on Cisco DNA software subscription for the first year with the purchase of eligible IE switches.
- Brand
- Cisco
- Management
- Layer 2 Managed
- Mounting
- Rack Mount
- Number of Ports
- 28
- Type of Ports
- SFP
- Copper RJ45(POE)
- Speed
- GE
- Max Operating Temperature
- 70 °C
- Min Operating Temperature
- -40 °C
- Input Voltage
- 24 VDC
- 110 VDC
- 48 VDC
- 220 VDC
- 110 VAC
- 220 VAC
- 240 VAC
- Jumbo Frames
- No
- TSN Support
- No
- Redundant Power
- Yes
- IE-4010-16S12P Datasheet
- Datasheet 480.31 KB
