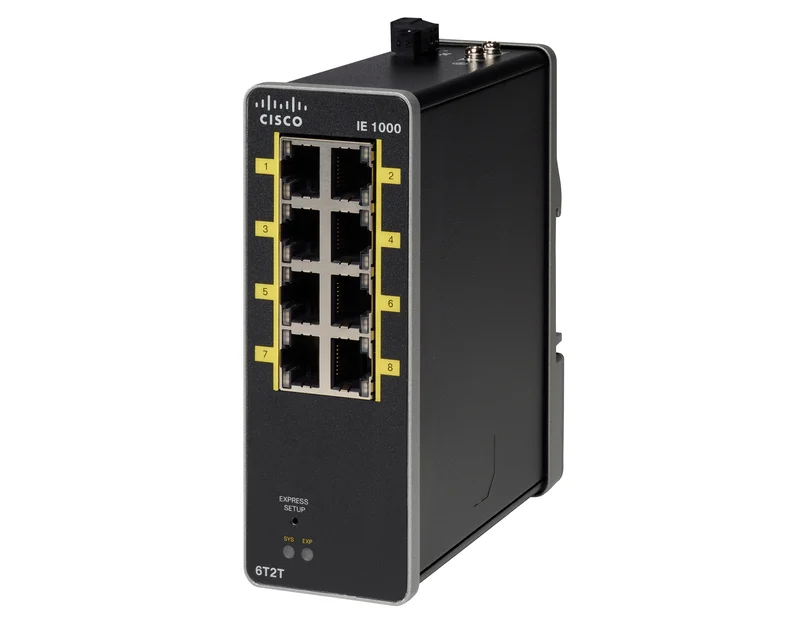

IE-1000-6T2T-LM - 96165078

IE-1000-6T2T-LM 8 Port 2xFE RJ45 Uplink, 6xFE RJ45 Downlink, GUI Based L2 switch

  • v
  • Combinaison de ports Fast Ethernet (FE) et Gigabit Ethernet (GE) pour le cuivre cuivre et la fibre optique
  • Interface graphique web simplifiée pour la gestion
  • Démarrage rapide : temps de démarrage en 30 secondes à partir du démarrage à froid
  • Diagnostic et analyse via le protocole SNMP (Simple Network Management Protocol) v2/v3 et syslog
  • Alimentation par Ethernet (PoE) disponible sur certains modèles
  • Fonctionnalités de surveillance incluant IGMP querier, IGMP snooping et DHCP snooping

The Cisco® Industrial Ethernet (IE) 1000 series switches are compact, rugged and aimed at Operational Technology (OT) users with limited IT network knowledge.

The Cisco IE 1000 series comes in a desktop / tabletop form factor providing fast deployment for digital transformation, acting as the intermediatary device for machine-to-machine (M2M) solutions with out-of-the-box configurations.

The Cisco IE 1000 series is a set of entry level switches with Power-over-Ethernet (PoE) options, ideal for locations with harsh temperatures, small spaces, and requires zero IT management. However, if neccessarey a web GUI is available to provide more flexibility in the deployment of advanced and secure multi-services.

Brand
Cisco
Management
Layer 2 Managed
Mounting
DIN Rail
Number of Ports
8
Type of Ports
Copper RJ45
Speed
FE
Max Operating Temperature
70 °C
Min Operating Temperature
-20 °C
Input Voltage
12 VDC
24 VDC
48 VDC
110 VDC
220 VDC
110 VAC
220 VAC
240 VAC
Jumbo Frames
No
TSN Support
No
Redundant Power
Yes
IE-1000-6T2T-LM Datasheet
Datasheet 545.75 KB
