ET-7026 - 96113034

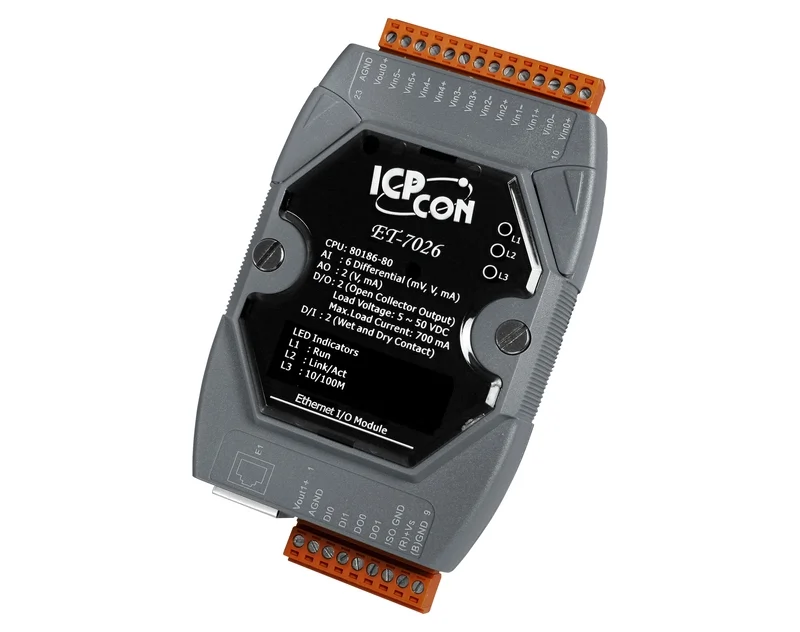

ET-7026 Multifunction Module (AI: 6 Ch, AO: 2 Ch, DI/counter: 2 Ch & DO: 2 Ch)

  • Communication Ethernet
  • E/S modulaires et flexibles avec compteurs, relais, ANA ou TOR
  • Led Alimentation et communication
  • TCP/IP, UDP, Modbus/TCP
  • Communication jusqu'à 100m sans switch
  • Connexion par borniers à vis

The ICP DAS ET-7000/PET-7000 series utilises Ethernet networking standards to enable data acquisition and control using Modbus/TCP protocol that makes perfect integration to SCADA software.

This range from ICP DAS caters for numerous aspects of data acquisition allowing monitoring, control and automation of processing or manufacturing applications. They can be used with thermocouples, RTD sensors, pressure, flow, voltage and current.

The PET-7000 features "PoE" that not only data but also power is carried through an Ethernet cable. This feature makes installation of PET-7000 easier.

Brand
ICP DAS
Signal
Multifunction
I/O Direction
Inputs & Outputs
Connectivity
Ethernet
Protocol
Modbus TCP
Channels
12
On board Logic
No
Resolution
16bit
ET-7026 Datasheet
Datasheet 584.83 KB
